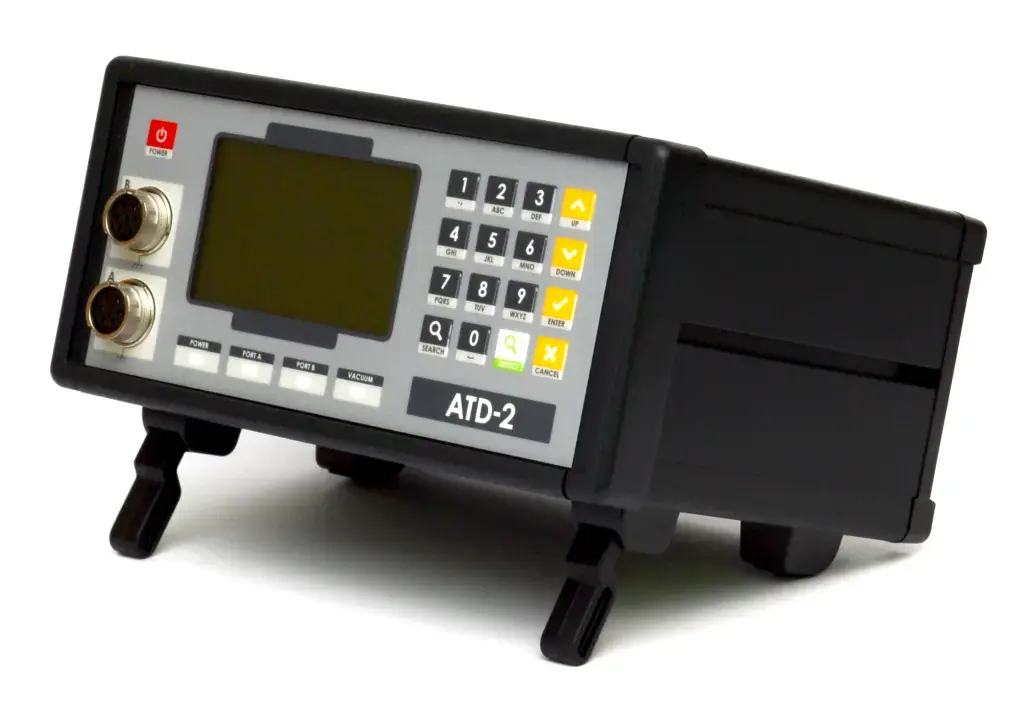

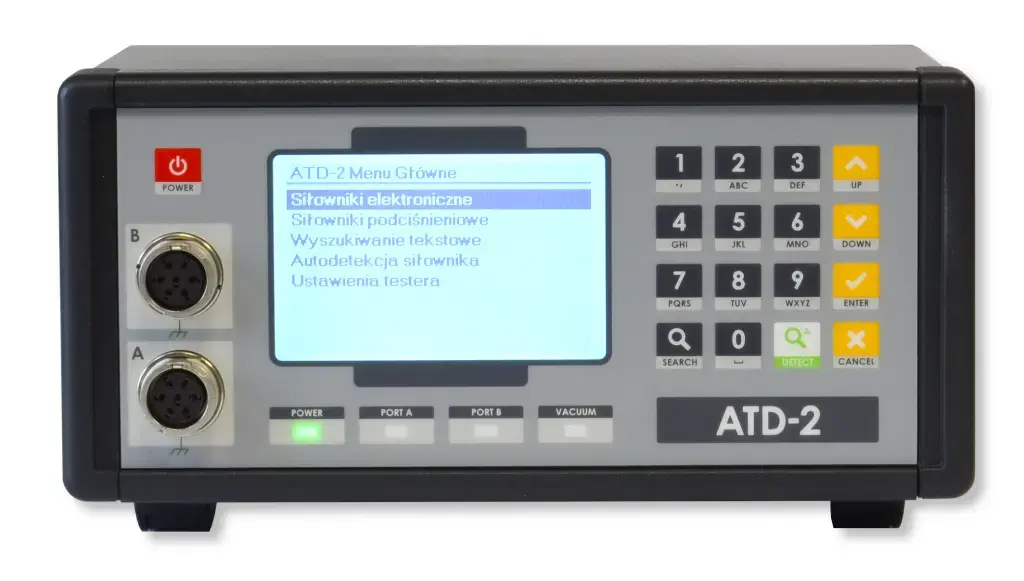

What is ATD-2 used for?

The device is designed for diagnostics of turbocharger actuators. It enables:

• position control of electronic and vacuum actuators
• verification of the full actuator movement range
• monitoring of actuator current consumption
• evaluation of variable geometry mechanism and wastegate valve operation

In practice, it allows rapid detection of sticking mechanisms, excessive mechanical resistance, and electrical faults, increasing repair efficiency and reducing the risk of misdiagnosis.

Supported Actuator Types

ATD-2 is designed to operate with a wide range of actuators used in boost systems, including:

• 12V and 24V electronic actuators
• vacuum actuators equipped with a position sensor
• actuator motors: DC, BLDC, UVW, and stepper motors

Depending on the tested actuator model, the device enables both direct motor control and communication via the following protocols: CAN, LIN, PWM, SENT, and UART.

Diagnostic Functions

Electronic Actuators

The device provides the following functions:

• automatic full-range movement test
• actuator position control
• current consumption measurement during operation
• real-time position signal reading

Vacuum Actuators

Available functions include:

• controlled vacuum generation
• mechanical travel range testing
• position sensor signal reading

Automatic Identification

The tester automatically detects:

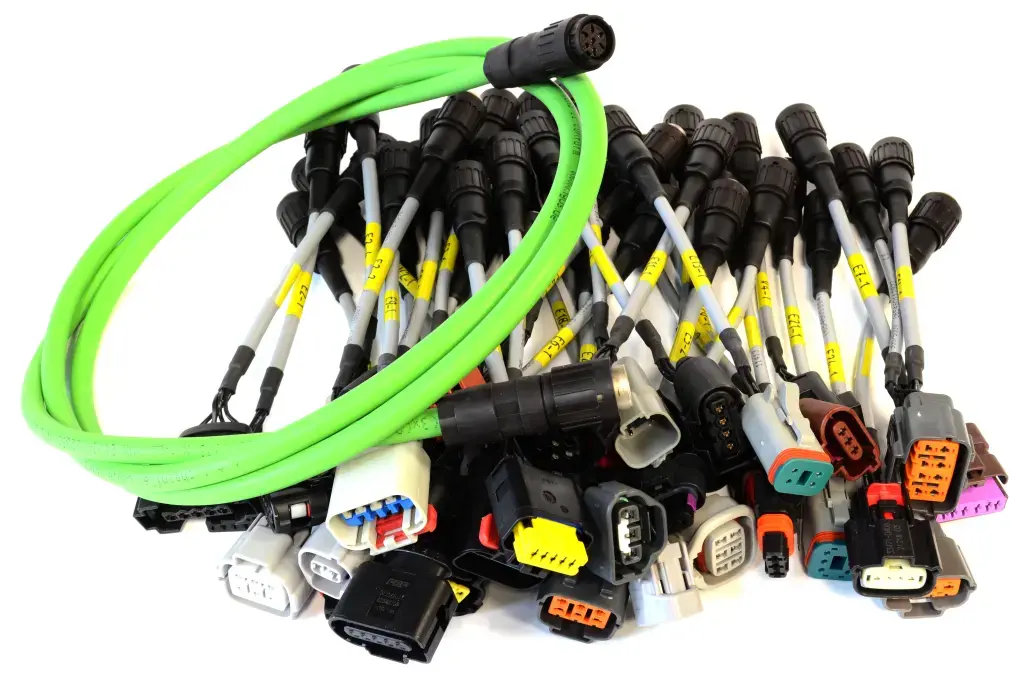

• connected adapter
• actuator control type
• compatible models in the internal database

This solution accelerates selection of the correct actuator configuration, simplifies the diagnostic process, and reduces the risk of testing errors.
